• V-shape Anti-Reflection Coating

    The V1 narrowband antireflection  coating  provides a minimum reflectivity R equal to or less than 0.25% at the specified wavelength at normal incidence.  Non-normal incidence exhibits fairly strong polarization dependence, as shown below. It is fabricated using hard electron beam deposited dielectric materials, and so has excellent resistance to abrasion, moisture and laboratory solvents. It can be deployed on BK7, fused silica and other standard optical glasses. Typical damage threshold is 2kW/cm2 CW and 5 J/cm2 with 10 nS pulses, measured at 532 nm. The V2 narrowband antireflection  coating  is V-coat designed to handle high powers in the UV spectrum.   It can be deployed on BK7 or Fused Silica , depending on the wavelength.
    • Minimum reflectivity ≤ 0.25%
    • Wavelength range 248 - 1024 nm
    • Adhesion meets MIL-C-675C
    • Electron beam evaporated durable multilayer dielectric
    For requesting a quote, please click here.

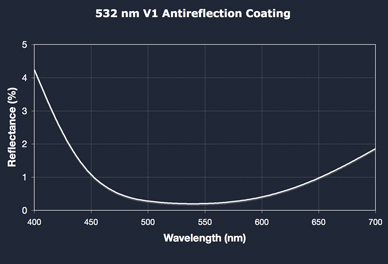

    V1 Coating at 532nm

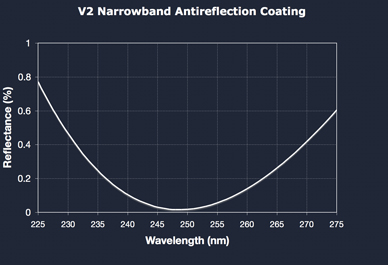

    V2 Coating at 248nm
